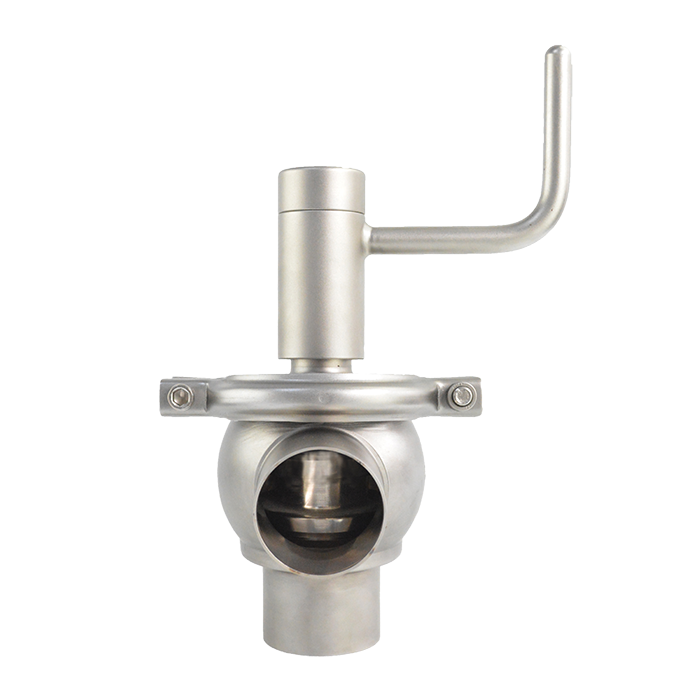

C-type manual shut-off valve

application

This shut-off valve is used to cut off the flow of materials in equipment pipelines and is widely used in industries such as food, brewing, beverages, dairy products, toothpaste, cosmetics, biopharmaceuticals, etc.

technical parameter

◆ Specification: 1"~ 4" DN25~DN100

Connection method: welding, clamps, threads, flanges

Maximum working pressure: ≤ 10bar

Working temperature: -10 ℃ to 150 ℃

◆ Part in contact with materials: SS304/SS316L

◆ Internal surface contact product: Ra ≤ 0.4 μ M

◆ Seals: EPDM, SI, FPM

operational principle

Rotate the rocker counterclockwise, and the transmission thread inside the rocker and the transmission thread on the bracket act. The rocker pushes the valve stem and seat up to open the valve; Rotate the joystick clockwise to push the valve stem and seat down, causing the seat sealing ring to compress the sealing surface of the lower valve body and close the lower valve port. Mainly used for fluid cut-off in pipeline systems, applied in pipeline systems.
