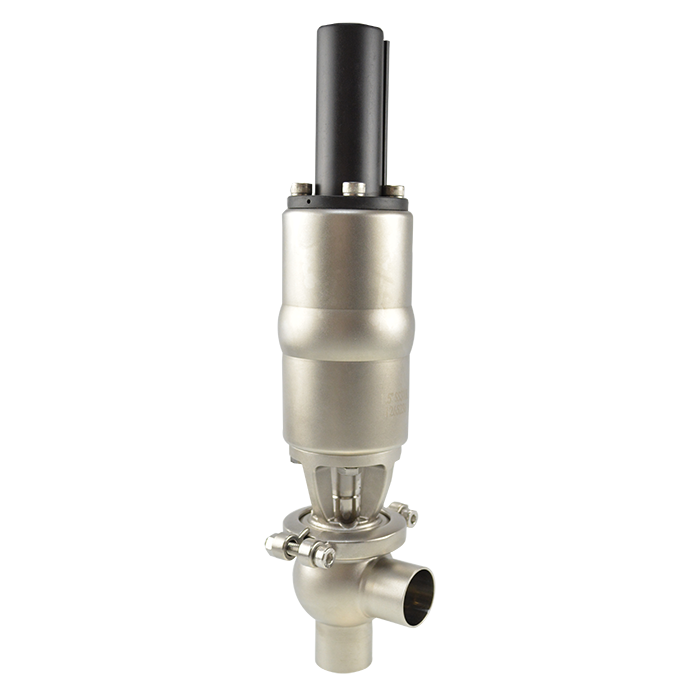

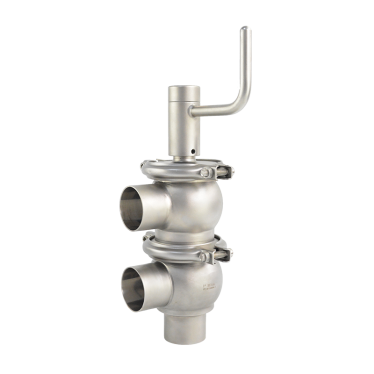

Q-type pneumatic shut-off valve

application

This shut-off valve is used to cut off the flow of materials in equipment pipelines and is widely used in industries such as food, brewing, beverages, dairy products, toothpaste, cosmetics, biopharmaceuticals, etc.

technical parameter

◆ Specification: 1"~ 6" DN25~DN150

Connection method: welding, clamps, threads, flanges

Maximum working pressure: ≤ 10bar

◆ Supply compressed air: 4-8bar

◆ Compressed air connection: Air pipe connector G1/8"

◆ Proximity switch: 6-36V DC 2 NPN or PNP (optional)

Working temperature: -10 ℃ to 150 ℃

◆ Part in contact with materials: SS304/SS316L

◆ Internal surface contact product: Ra ≤ 0.4 μ M

◆ Seals: EPDM, SI, FPM

operational principle

This model uses compressed air to push the piston inside the pneumatic actuator up, and the piston rod and valve stem are connected with positioning cards. At the same time, when the air compression pushes the piston inside the pneumatic actuator up, it also pulls the valve stem up, that is, the valve opens. When the air compression is lower than the spring force or there is no gas compression, the piston is pushed down by the spring and drives the valve stem to move down, closing the lower valve port. Mainly used for fluid cut-off in pipeline systems, applied in pipeline systems.
