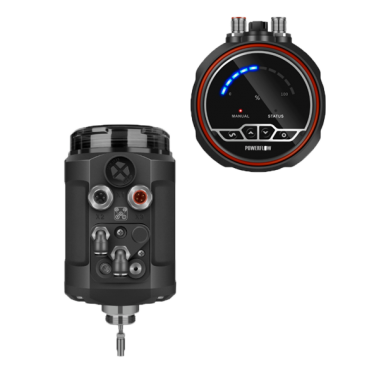

C-Top controller

Application: Widely used for sanitary grade pneumatic control valves. For example, pneumatic butterfly valves, pneumatic globe valves, pneumatic directional valves, pneumatic double seat anti mixing valves, pneumatic diaphragm valves, pneumatic tank bottom valves, and other pneumatic control valves with a stroke not exceeding 65mm.

advantage

Modular design

Universal interface

Multiple electronic modules

Easy and convenient line connection

Normally Closed Connection (NC) Normally Open Connection (NO)

Control System Configuration

technical parameter

ICS integrated controller

Pressure reducing valve

Compatible

Power connection

24V DC

information feedback

PNP/NPN

Sensors/Proximity Switches

2 TOP adjustable sensors (effective travel range 65mm)

Power consumption (1 solenoid valve and 1 activated sensor

24V DC<50mA

Electromagnetic valve EV

1-3 EV 3/2

Pneumatic form

NC Normally Closed, NO Normally Open, 1 solenoid valve

Tracheal joint

R1/8"

working pressure

5-7bar

working temperature

0 ℃ to 70 ℃
