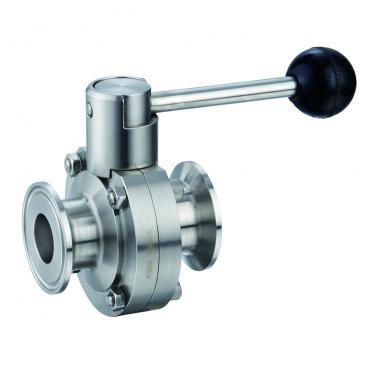

Manual welding butterfly valve

application

This manual butterfly valve is widely used in industries such as food, brewing, beverages, dairy products, cosmetics, etc., as it is used to cut off material flow in equipment pipelines or as a flow and pressure regulator.

technical parameter

Specification: 3/4"~ 6" DN20~DN150

Connection method: welding, clamps, threads, flanges

Maximum working pressure: ≤ 10bar

Working temperature: -10 ℃ to 150 ℃

◆ Part in contact with materials: SS304/SS316L

◆ Internal surface contact product: Ra ≤ 0.8 μ M

◆ Handle: pull rod handle/multi position nozzle handle

◆ Seals: EPDM, SI, FPM

operational principle

Manual butterfly valve is a type of valve that uses a circular butterfly plate as the opening and closing element and rotates with the valve stem to open, close, and regulate the fluid channel. The butterfly plate of the butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical channel of the sanitary butterfly valve body, the disc shaped butterfly plate rotates around the axis, with a rotation angle between 0 ° and 90 °. When rotated to 90 °, the valve is fully open.
