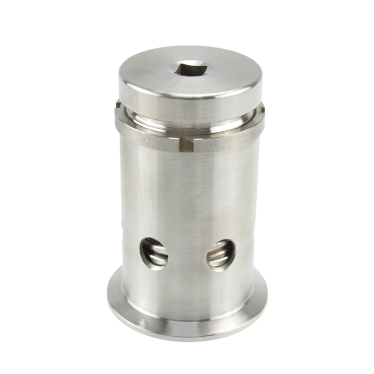

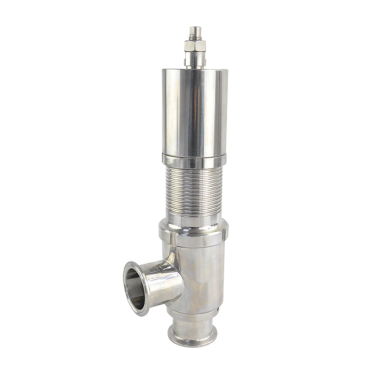

Basic safety valve

application

This safety valve is widely used in industries such as food, brewing, beverages, dairy products, toothpaste and cosmetics, and biopharmaceuticals.

technical parameter

◆ Specification: 0.75"~ 4" DN25~DN100

Connection method: welding, clamps, threads, flanges

Maximum working pressure: ≤ 8bar

Working temperature: -10 ℃ to 150 ℃

◆ Part in contact with materials: SS304/SS316L

◆ Internal surface contact product: Ra ≤ 0.4 μ M

◆ Seals: EPDM, SI, FPM

operational principle

This safety valve is a self controlled valve that relies on medium pressure. By adjusting the compression spring and lock nut of the adjusting cover, a specific pressure is set. The set pressure is the maximum safety pressure value set to avoid damage to the pipeline equipment. When the pipeline pressure exceeds the set pressure of the safety valve, the valve seat automatically pops up, and the pressure in the pipeline system is released to achieve protection for the pipeline and equipment.
